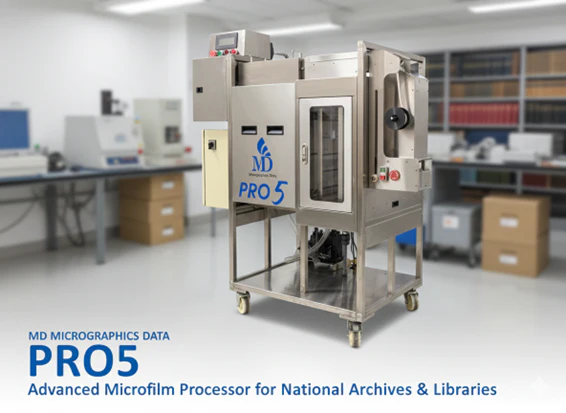

Smart MD PRO5 Microfilm Processor
High-Speed Archival Processing with Intelligent Automation
The Smart MD PRO5 Microfilm Processor is a compact, high-performance deep-tank processor designed for professional microfilm laboratories, national archives, libraries, government agencies, and service bureaus. Combining intelligent automation with precision engineering, the MD PRO5 delivers exceptional image quality, reliable archival processing, and industry-leading efficiency while maintaining a compact footprint.
Constructed with premium 316 stainless steel processing tanks, the MD PRO5 is built for years of dependable operation in demanding production environments. Designed to process both 16mm and 35mm silver halide microfilm, it provides consistent development, fixing, washing, and drying to meet long-term archival preservation standards.
Intelligent Features
PLC Touchscreen Control
The integrated PLC touchscreen provides intuitive control over all processing functions. Operators can easily preset developing temperatures, replenishment rates, transport speed, and elevator functions for accurate, repeatable results.
Fiber Optic Film Detection
An advanced fiber optic sensor automatically detects film leader holes, ensuring smooth transport and reducing operator intervention during processing.
Intelligent Elevator System
The precision elevator system maintains proper film tension throughout the processing cycle, minimizing handling issues while producing consistent image quality.
Daylight Film Loading
A built-in lightproof loading box allows film to be loaded in normal room lighting using solid flange reels or magazines, eliminating the need for a traditional darkroom and simplifying daily operation.
Technical Specifications
| Feature |
Specification |
| Processor Type |
Compact Deep Tank Processor (4-Tank System: Developer, Wash, Fix, Wash) |
| Film Formats |
16mm & 35mm Standard (105mm Optional) |
| Maximum Processing Speed |
Up to 20 feet per minute (6.06 m/min) |
| Tank Capacity |
5.7 Liter Deep Tanks |
| Developing Temperature |
Adjustable from 28°C to 39°C |
| Drying Temperature |
Adjustable from 35°C to 65°C |
| Power Requirements |
240V / 15 Amp (110V Step-Up Transformer Available) |
| Dimensions |
1190 × 600 × 1322 mm |
Economical & Environmentally Friendly
The Smart MD PRO5 is engineered to minimize operating costs without sacrificing processing quality.
Compatible with both Ready-to-Use (RTU) and concentrated chemistry, the processor uses approximately 235 ml of chemistry per 100 feet of film at maximum operating speed, helping reduce chemical expenses while maintaining excellent archival consistency.
Its highly efficient wash system also dramatically lowers water consumption, making it one of the most environmentally responsible processors available.
MD PRO5 vs. Traditional Tabletop Processors
| Specification |
Smart MD PRO5 |
Typical Tabletop Processor |
| Maximum Speed |
20 FPM (6.06 m/min) |
Approximately 13 FPM (4.0 m/min) |
| Developer Tank |
5.7 Liters |
Approximately 3 Liters |
| Fixer Tank |
5.7 Liters |
Approximately 3 Liters |
| Maximum Film Length |
400 ft (122m) |
Approximately 215 ft (66m) |
| Water Consumption |
1.11 Liters per 5 reels |
Approximately 150 Liters per 5 reels |
| Control System |
PLC Digital Touchscreen |
Analog or Basic Keypad |
| Film Formats |
16mm, 35mm, Optional 105mm |
16mm & 35mm (Rack Changes Required) |
| Weight |
120 kg |
Approximately 86 kg |
Why Choose the Smart MD PRO5?
50% Faster Production
With processing speeds of 20 feet per minute, the MD PRO5 processes significantly more film than conventional tabletop processors, increasing productivity and reducing turnaround times for high-volume projects.
Superior Chemical Stability
The larger 5.7-liter deep tanks provide greater thermal stability and chemical consistency, helping maintain uniform image density throughout long production runs and supporting archival-quality results.
Industry-Leading Water Efficiency
Using only 1.11 liters of water per five reels, the MD PRO5 reduces water consumption by more than 99% compared to many conventional processors, lowering operating costs while supporting environmentally sustainable workflows.
Intelligent Digital Automation
The integrated PLC touchscreen replaces outdated analog controls with modern automation, providing:
- Precision temperature control
- Digital transport speed adjustment
- Real-time system monitoring
- Automatic chemical replenishment
- Simplified operation with repeatable processing profiles
Ideal Applications
The Smart MD PRO5 Microfilm Processor is designed for organizations that demand dependable, high-volume archival film processing, including:
- National archives
- Government agencies
- Libraries
- Universities
- Service bureaus
- Records management centers
- Historical preservation organizations
- Professional microfilm production facilities
Built for Long-Term Reliability
Combining intelligent automation, durable stainless-steel construction, exceptional processing speed, and environmentally responsible operation, the Smart MD PRO5 Microfilm Processor delivers the performance, consistency, and reliability required for today’s professional archival imaging environments.
